Fresnel

lights

Material — recycled solid plastic, aluminium fixtures, linear LED

Technique — robot extruded & hand crafted

Year of design — 2013

3D FILES

Press Kit

SPECSHEETS

INSTALLATION MANUALS

The Fresnel divides and scatters light through the hills and valleys of low-resolution 3D printing. As if ripples in water, the concentric design sees glittering bands pulsate outwards from a central aluminium ball.

Fresnel

Wall lamps

3

Wall Ø36cm
€2.280

Wall Ø52cm
€2.640

Wall Ø68cm
€3.130

Fresnel

Pendant lamps

5

Pendant Ø36cm

€2.280

Pendant Ø52cm
€2.640

Pendant Ø68cm
€3.130

Pendant Ø36cm, Ø36cm
€4.380

Pendant Ø36cm, Ø52cm
€4.640

Sizing

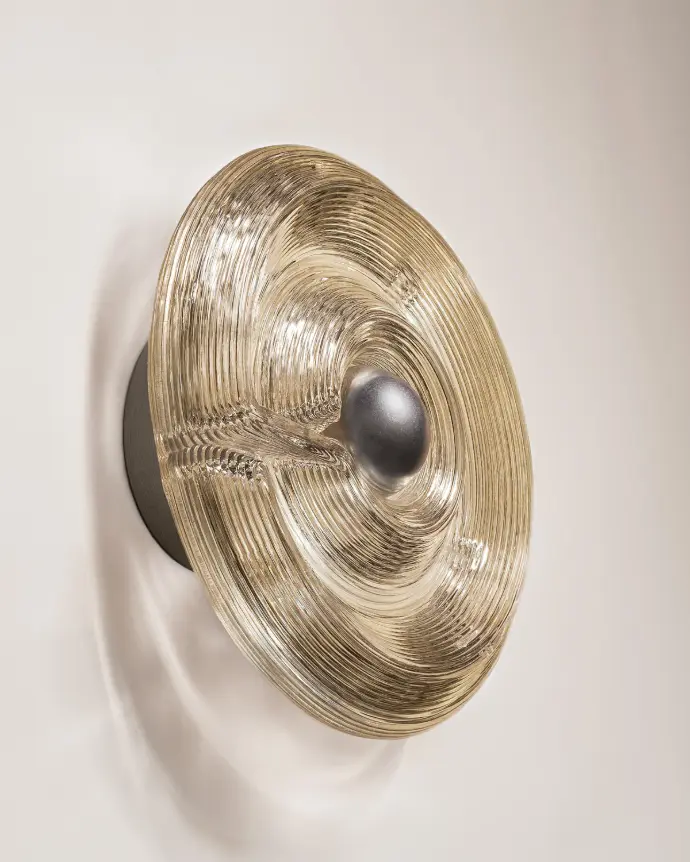

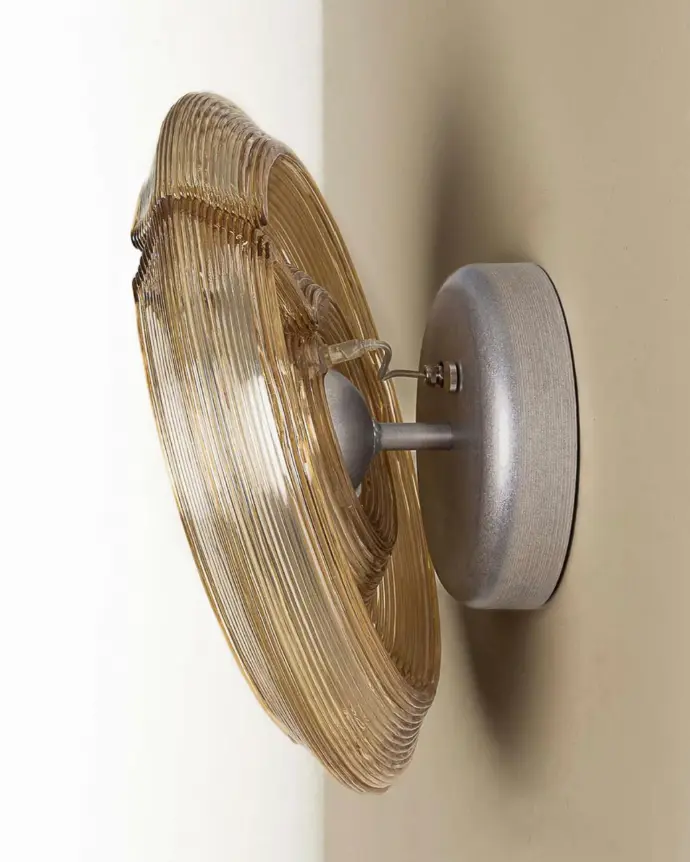

Wall 36
Ø36cm | 2,7kg

Ø14in | 6lbs

<17W | 1.300lm

€2.280

Wall 52
⌀52cm
€2.640

Wall 68
⌀68cm
€3.130

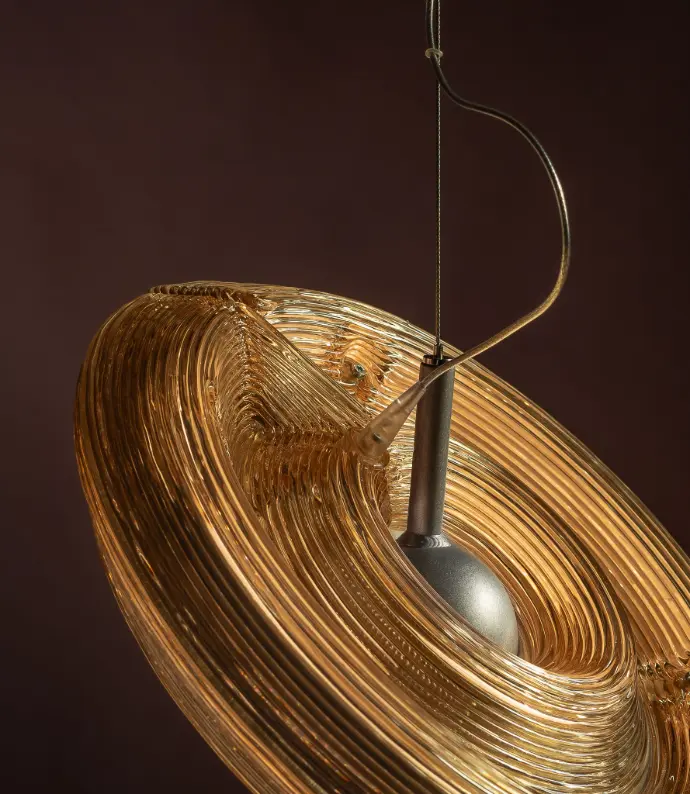

Pendant 36
⌀36cm
€2.280

Pendant 52
⌀52cm
€2.640

Pendant 68
⌀68cm
€3.130

Pendant 36, 36
⌀36 cm
€4.380

Pendant 36, 52
⌀36 cm
€4.640

Impressions

Fresnel Wall Ø68cm

Golden hue of a Fresnel 68cm

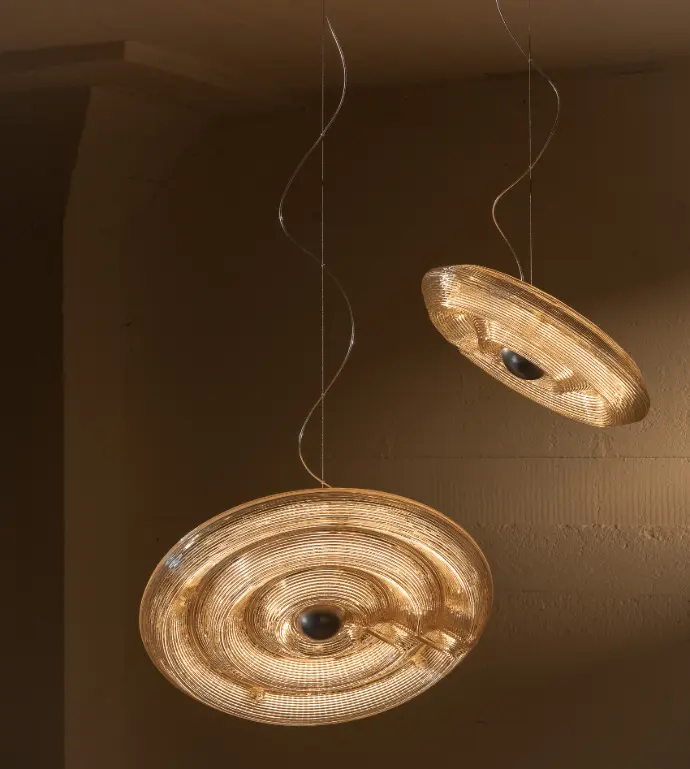

Fresnel pendants Ø52cm and Ø36cm

With an all-round lighting effect, there is truly no incorrect angle from which to view the lamp.

Fresnel DIA 52 and 68cm

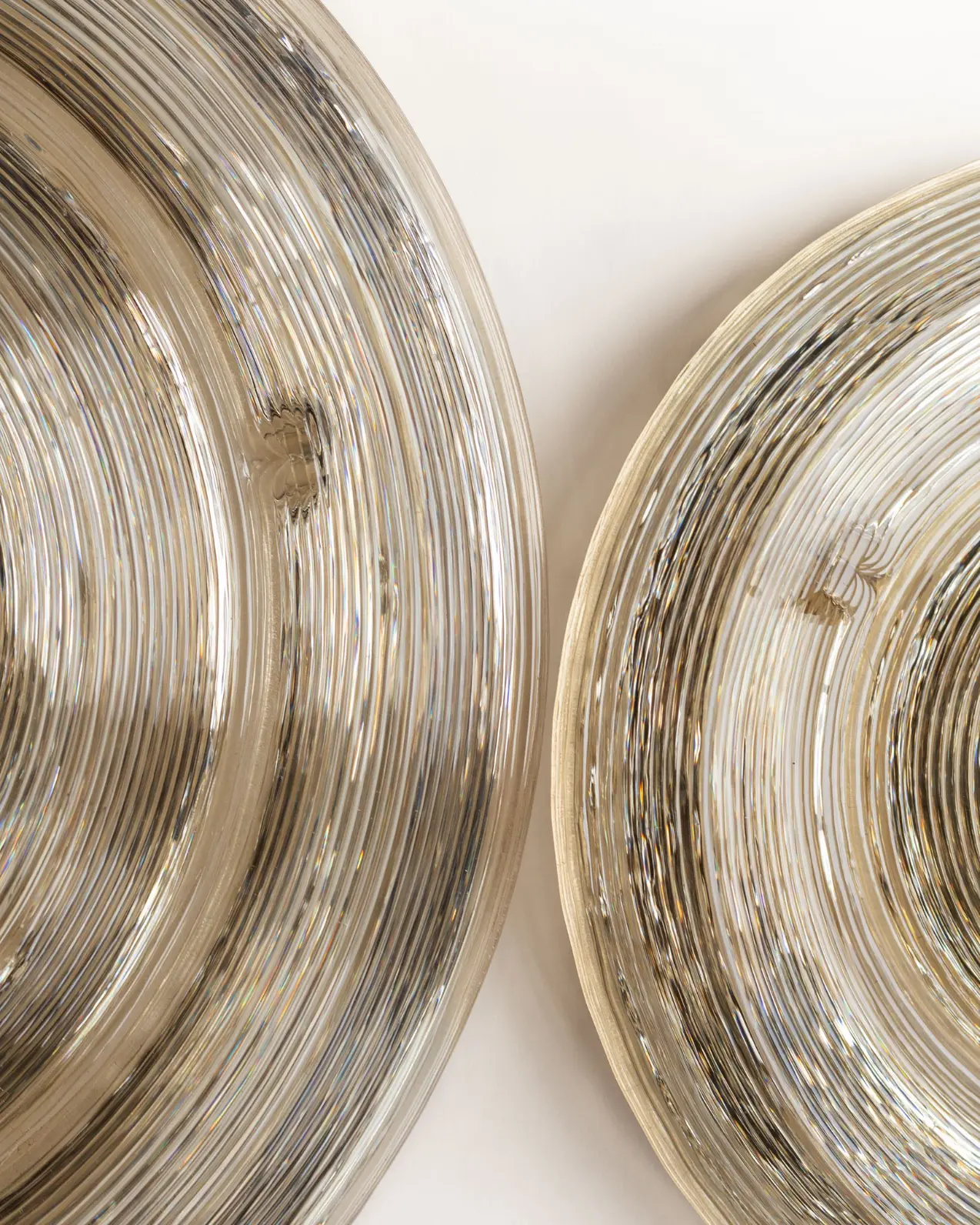

Colouration

Color variations may occur due to the use of recycled materials. To ensure as much cohesion as possible, all desired units should be included in one order.

production

Each Fresnel is handpainted on the inside

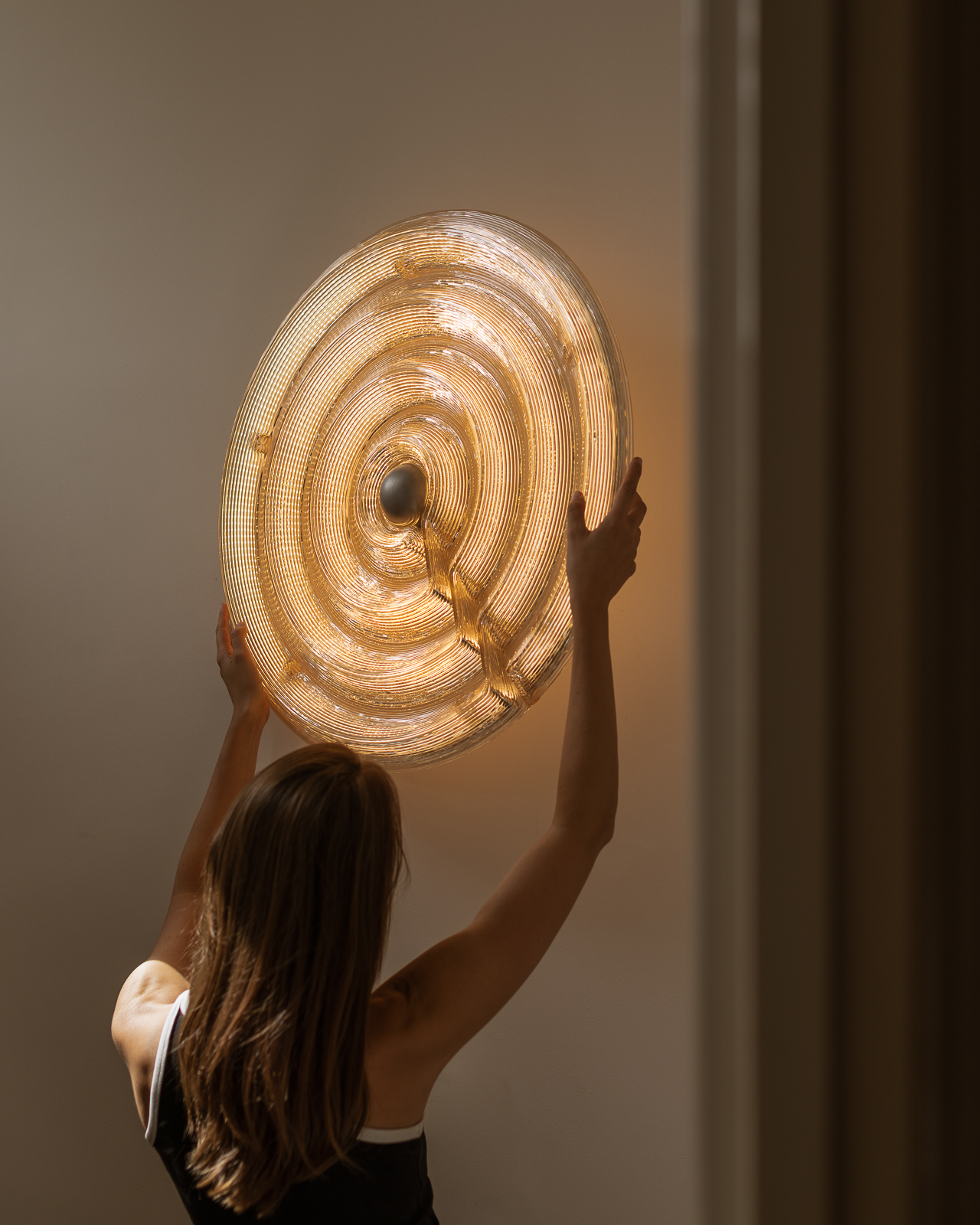

Mara mounting a Fresnel Wall 52cm

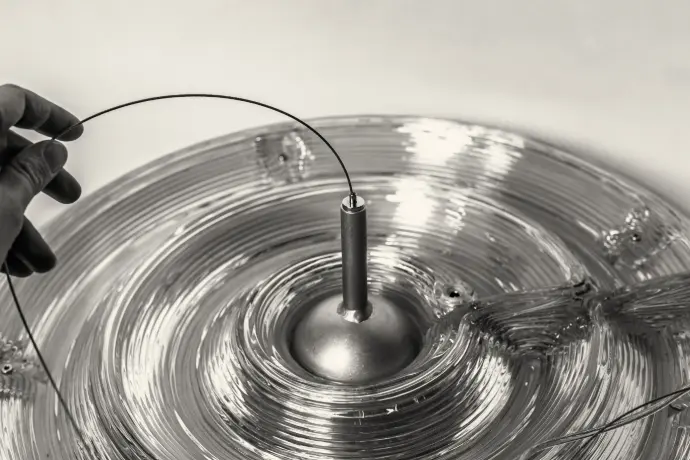

It is very easy to adjust the height at any time

Mounting the aluminium ceiling cap

The Fresnel is sourced from rooftop windows, safety glasses, and industrial chocolate moulds

Care

The Fresnel is not suitable for use outdoors. Regular dusting is advised. Please ensure

that the plastic components of the Fresnel do not come into contact with acetone or other

chemical cleaners. Kooij products are protected by a limited warranty. To read the full terms

please visit kooij.com/warranty.

faq

What are the available dimming options?
0-10V and Mains (TRIAC)

How can I adjust the height of the Fresnel pendant?

The lamp is very easy to adjust in height, even after hanging. There is a push button on the aluminum ball that allows you to easily tuck the remaining cord into the ball.

Can I adjust the angle of the disk?
It is very easy to adjust the disk. You can simple twist and set it to the desired angle.

Can I replace the LED modules myself?

We do not recommend unscrewing the disks yourself. If there is an issue with the LED modules, please contact us at office@kooij.com. The LED modules have a lifespan of 50,000 hours, so they do not need to be replaced frequently.
